B.R.PRECISION QUICK FIT MACHINE VICE
Model Type: BR - QFT - 125 - 160 - 200
Descriptions & Operation

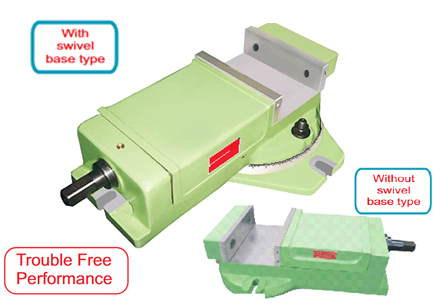

B.R. Quick Fit Machine Vice (Box) (Screw Operated)
- Designed for precision Tool Room and Production work
- High accuracy and Rigid assembly construction
- Movable Jaw ensures shock resistance, tensile strength and toughness
- Jaw plates made out of special Alloy Steel hardened and ground
- Quick and secured clamping which minimizes the operation time
- Tenons Slot will be ground, Stopper holes are made at Side jaw
- Parallelism accuracy at 0.02 microns
- Standard Accessories Supplied 2 no’s T-Bolts & Set of Tenons & Screws One handle
| Model Types & Dimensions Mechanically Operated | |||
| Specification |
Model Type BRQFT125 🠋 |
Model Type BRQFT160 🠋 |
Model Type BRQFT200 🠋 |
|---|---|---|---|
| Width of Jaws | 125 mm | 160 mm | 200 mm |
| Max.Jaw Opening Range | 0 65 mm | 0 100 mm | 0 125 mm |
| Depth of Jaws | 45 mm | 55 mm | 65 mm |
| Work face Height | 50 mm | 55 mm | 70 mm |
| Total Height of base without swivel Base | 90 mm | 110mm | 135 mm |
| Total height of Base with swivel Base | 130 mm | 150 mm | 178 mm |
| Total Lengh to fBase | 370 mm | 458 mm | 490 mm |
| Total Width of Base | 200 mm | 245 mm | 295 mm |
| Total Width of Base with Swivel Base | 210 mm | 225 mm | 315 mm |
| Tenons lot Size | 14 mm | 14 mm | 14 mm |
| Clampings lot Size | 16 mm | 16 mm | 16 mm |
| Swivel Base Length x width | 310 x 210 mm | 340 x 225 mm | 390 x 315 mm |
| Total Weight with Swivel Base(App) | 28 kgs | 33 kgs | 57 kgs |
| Total Wight with out Swivel Base(App) | 18 kgs | 45 kgs | 78 kgs |
