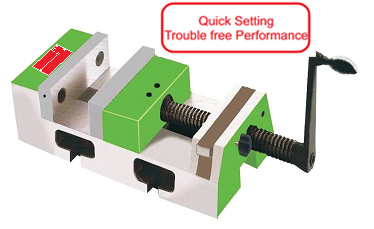

B.R.PRECISION QUICK FIT DRILL VICE
Model Type:BR- QFDV -100 -130
B R QUICK FIT DRILL VICE
- Designed for quick clamping that advantages for Production Time
- Quick setting by sliding Jaws movement.
- It is Made out of high tensile cast and machined and grounded
- Jaw plates made out of special Alloy Steel hardened and ground
- Tenons Slot will be ground, Stopper holes are made at Side jaw
- It can be clamped horizontal and Vertical positions.
- This type of vice used in Drilling machines, Grinding machines.
- Parallelism accuracy at 0.02 Microns
| Model Types & Dimensions Mechanically Operated | ||
| Specification |
ModelType BR-QFDV-100 🠋 |
ModelType BR-QFDV-130 🠋 |
|---|---|---|
| Widthof Jaws | 100 mm | 130 mm |
| Max.Jaw Opening Range | 0-100 mm | 0-125 mm |
| Depthof Jaws | 35 mm | 35 mm |
| Workface Height | 35 mm | 43 mm |
| Total height of Base | 72 mm | 78 mm |
| Total Lenght of Base | 425 mm | 490 mm |
| Total Width of Base | 100 mm | 130 mm |
| Clamping slot Size | 14 mm | 14 mm |
| Total Wight(App) | 9kgs | 14kgs |
