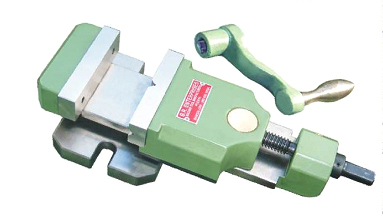

B.R.PRECISION DRILL CUM GRINDING VICE
Model Type:BR - DGV - 90
B R Drill cum Grinding vice
- Designed for quick clamping that advantages for Production Time
- Quick setting by sliding Jaws movement.
- It is Made out of high tensile cast and machined and grounded
- Jaw plates made out of special Alloy Steel hardened and ground
- Tenons Slot will be ground, Stopper holes are made at Side jaw
- It can be clamped horizontal and Vertical positions.
- This type of vice used in Drilling machines, Grinding machines.
- Parallelism accuracy at 0.01 Microns
| Model Types & Dimensions Mechanically Operated | |
| Specification |
Model Type BR-DGV-90 🠋 |
|---|---|
| Width of Jaws | 90 mm |
| Max.Jaw Opening Range | 0-75 mm |
| Depth ofJaws | 32 mm |
| Workface Height | 40 mm |
| Total height of Base | 72 mm |
| Total Lenght of Base | 300 mm |
| Total Width of Base | 140 mm |
| Clamping slot Size | 14 mm |
| Total Wight (App) | 8kgs |
