B.R.PRECISION CAST IRON 'V' BLOCK
Model Type: BR CVB-1 -2-3-4-5-6-7
Precision Hardened ‘V’ Block
- Made out of High Grade cast Iron
- Accuracy at 0.01 Micron

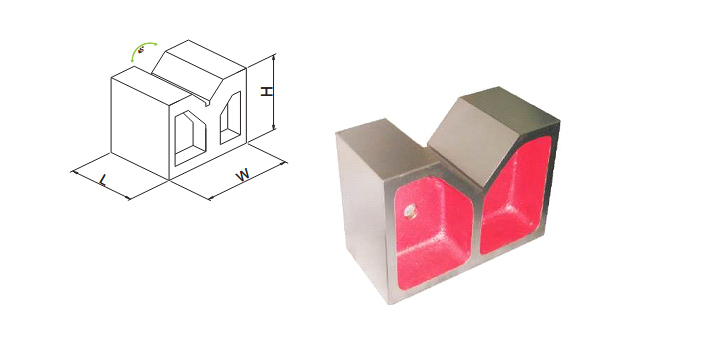

| Model Types & Dimensions (One Side 'V' Block ) | |||||||
| Specification |
Model Type BR-CVB-1 🠋 |
Model Type BR-CVB-2 🠋 |
Model Type BR-CVB-3 🠋 |
Model Type BR-CVB- 4 🠋 |
Model Type BR-CVB-5 🠋 |
Model Type BR-CVB-6 🠋 |
Model Type BR-CVB-7 🠋 |
|---|---|---|---|---|---|---|---|
| Width of V Block (W) | 300 mm | 250 mm | 205 mm | 160 mm | 135 mm | 105 mm | 80 mm |
| Height of V Block (H) | 200 mm | 175 mm | 145 mm | 95 mm | 80 mm | 70 mm | 65 mm |
| Length of V Block (L) | 150 mm | 130 mm | 105 mm | 65 mm | 55 mm | 40 mm | 35 mm |
