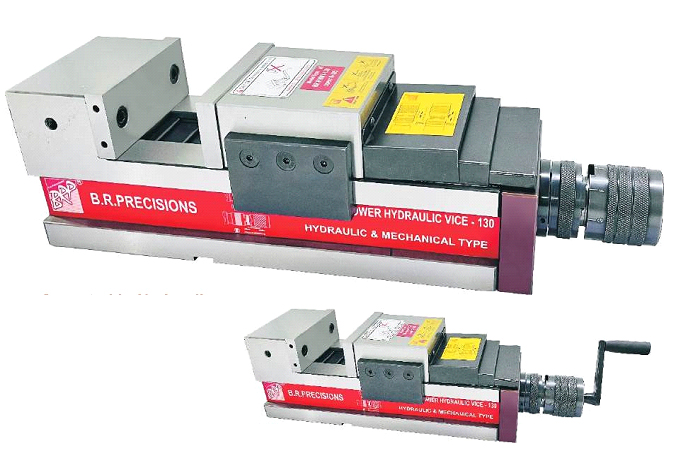

B.R.PRECISION POWER HYDRAULIC MACHINE VICE
Operatedin Hydraulic & Mechanical Type
This type of Power Hydraulic vice Is suitable for Horizontal and vertical combined heavy cutting for cnc machining center VMC and HMC angle fixed type spherical segment ball can produce the force for angle locking which can make the vice plate floating upward and avoid slanting of the workpiece. Powerful material cast iron with high absorption and has strong anti-tension which can keep long durability for absorption and has strong rigidity with high precision tenon slot grounded, Made out of high tensile castingmachined and surface ground to ensure maximum accuracy jaw plates are made out of tool steel hardened and ground inbuilt hydraulic booster system for maximum clamping force with minimum pressure. Squareness and Parallelism accuracy at 0.02 Micron
- No Hammering
- No Pipe Locking
- No Hydraulic Power Pack Required
- Extremely easy to clamp and un-clamp
- Trouble Free Performance
- Standard Accessories Supplied 4 no’s T-Bolts & L Clamps,set of Tenons & Screws One handle Instruction manual & inspectioin report
| Model Types & Dimensions Hydraulically Operated | ||||
| Specification |
Model Type BR-PHMV-100 🠋 |
Model Type BR-PHMV-130 🠋 |
Model Type BR-PHMV-160 🠋 |
Model Type BR-PHMV-200 🠋 |
|---|---|---|---|---|
| Width of Jaws | 100 mm | 130 mm | 160 mm | 200 mm |
| Max.Jaw Opening Range | 0-130 mm | 0-185 mm | 0-260 mm | 0-290 mm |
| Depth of Jaws | 55 mm | 55 mm | 55 mm | 70 mm |
| Work face Height | 85 mm | 98 mm | 115 mm | 125 mm |
| Overall Height | 142 mm | 153 mm | 170 mm | 180 mm |
| Overall width of Base | 102 mm | 132 mm | 162 mm | 202 mm |
| Overall Length of Base | 470 mm | 535 mm | 625 mm | 700 mm |
| Tenon Slot | 18 mm | 18 mm | 18 mm | 18 mm |
| Clamping Force | 2000 kgs | 3000 kgs | 4000 kgs | 4000 kgs |
| Weight(App) | 25 kgs | 45 kgs | 60 kgs | 82 kgs |
