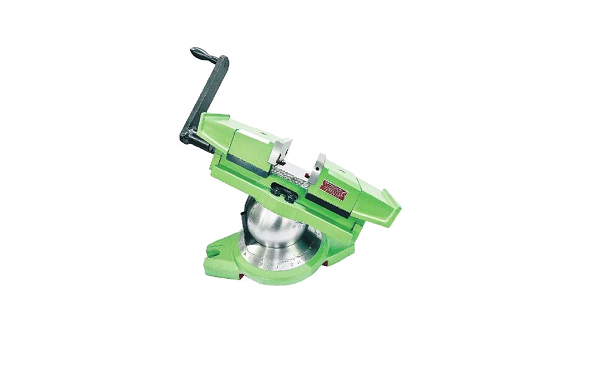

B.R.PRECISION UNIVERSAL BALL PARALLEL SELF CENTERING VICE
Model Type: BR - UB PSCV - 120 ( Without ‘’V’ Block Type )
Universal Ball ‘V’ Block Parallel Self centering vice
- This type of vice is made out of high grade Tensile casting having brinell hardness 180 and above accurately machined & Grounded
- It consists of three major components namely the swivel base The spherical ball & the vice unit The ball in turn can be swivelled over the swivel base through 360° in the horizontal plane and through 45° in the vertical plane thus the vice can be set any desired compound angle.
- Clamping jaws & ‘V’ Blocks are made out of tool steel heat treated at 52° to 54° HRC & Grounded with stopper holes at the side of the clamping jaws and stopper rod in the ‘V’ Block
- Safe guards at the movable jaw ends to prevent the entering scraps
- Tenons slots are Grounded Squareness and Parallelism grounded at 0.02 Microns
- Jaw design minimizes jaw lift Easy center-line adjustment
- Designed to work on VMC Machines, HMC Machines Drilling machine, and other controlled centers.
- Standard Accessories Supplied 2 no’s T-Bolts, Set of Tenons & Screws One handle, one single end Spanner
| Model Types & Dimensions Mechanically Operated | |
| Specification |
Model Type BR-UBPSCV-120 🠋 |
|---|---|
| Width of Jaws | 120 mm |
| Max. Jaw Opening Range | 0-140 mm |
| Depth of Jaws | 40 mm |
| Work face Height | 215 mm |
| Total Height of Base | 250 mm |
| Total Width of Base | 130 mm |
| Total Length of Base | 380 mm |
| Tilting Angle of basea tVertical | 45°degree |
| Swivelling Anglein orixontal Plane | 360°degree |
| Tenon slot | 14 mm |
| Clamping clot | 16 mm |
| Least count for Swivelling anda ngular | 1° degree |
| Total Weight(App) | 44kgs |
