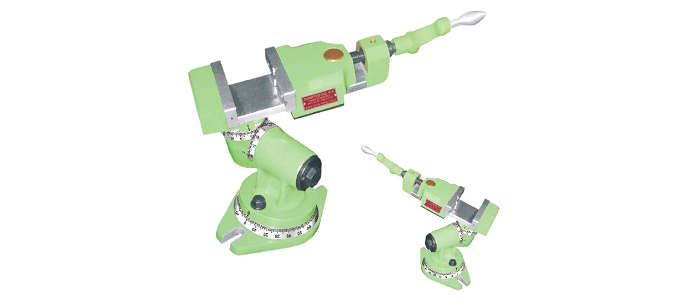

B.R.PRECISION UNIVERSAL VICE
Model Type:BR - UV - 100
Universal Ball ‘V’ Block Parallel Self centering vice
- This type of vice is made out of high grade Tensile casting having brinell hardness 180 and above accurately machined & Grounded
- It consists of three major components where as it works in 3 way directions at any desired angles the swivel of angles over the swivel base through 360° and the vertical plane tilts at 180° & horizontal plane tilts at 180° thus the vice can be set any desired compound angle.
- Clamping jaws are made out of tool steel heat treated at 52° to 54° HRC & Grounded with stopper holes at the side
- Tenons slots are Grounded Squareness and Parallelism grounded at 0.02 Microns
- Designed to work on Tool & cutter machine, surface grinding machine.
| Model Types & Dimensions Mechanically Operated | ||
| Specification |
Model Type BR-UV-100 🠋 |
|
|---|---|---|
| Width of Jaws | 100 mm | |
| Jaw Opening Range | 0-70 mm | |
| Deptho f Jaws | 30 mm | |
| Workface Height(App.) | 160 mm | |
| Overall Height of Base(App.) | 175 mm | |
| Overall Length of Base(App.) | 275 mm | |
| Overall Width of Base(App.) | 100 mm | |
| Swiveling Angle in Vertical Plane | 180°Degree | |
| Swiveling Angle in Horizontal Plane | 360°Degree | |
| Tenon slot Size | 12 / 14 mm | |
| Clamping slot Size | 14 mm | |
| Swivel Base Length x width | 185 x 128 mm | |
| Least count for Swivelling and Angular | 1°Degree | |
| Total Weight (App ) | 15 kgs | |
