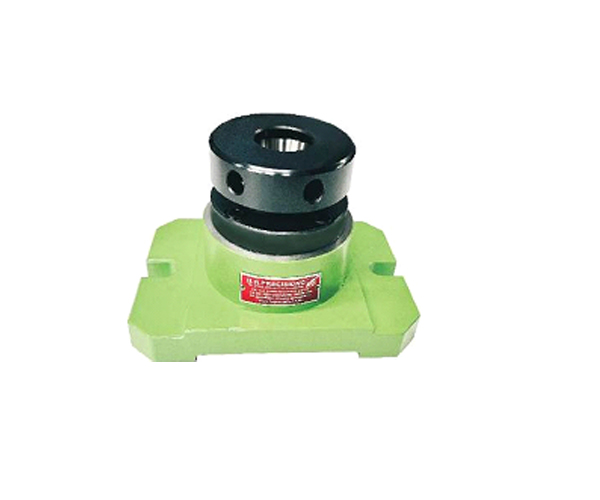

B.R.PRECISION COLLET HOLDING FIXTURE
Model Type: BR - CT F - 100 ( Collet Fixture A-25 )
Collet Holding Fixture
- This type Fixture is suitable for drillingand milling operations, Boring m/c
- Easy setting, Quick set up time.
- Body Made out of high grade Tensile casting
- Collet holding fixture made out of alloy steel with machined and hardened at 50° to 54° HRC and Ground with accurate
- Simple for locking at Vertical operations
- easy to exchange for 3 / 4 jaws chuck
- Available in chuck type and collet holding type.
- Parallelism at 0.02 microns
| Model Types & Dimensions Mechanically Operated | |
| Specification |
Model Type BR-CTF-100 🠋 |
|---|---|
| Collet fixture A-25 (ØHoldingrange) | Ø 3-25 mm |
| Total Length | 186 mm |
| Total Width | 126 mm |
| Total Height | 116 mm |
| Clamping Slot | 16 mm |
| Total Weight (App ) | 6 kgs |
