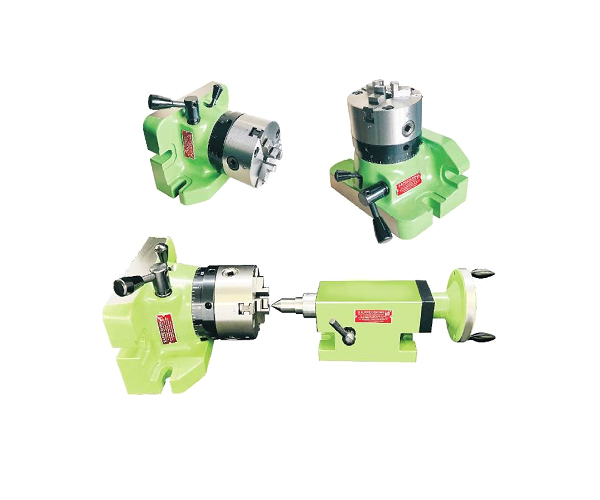

B.R.PRECISION SIMPLE INDEXING HEAD
Model Type: BR - SIH - 100 ( Chuck Type )
Precision Simple Indexing head
- Horizontal & Vertical Type
- Quick Indexing at 12 Positions
- Easy set up for mass production
- Simple index include 3 jaw self centering chuck
- Tail stock can be supplied for support (Optional)
| Model Types & Dimensions Mechanically Operated | |
| Specification |
Model Type BR-SIH-100 🠋 |
|---|---|
| Center Height | 72 mm |
| Width of Base | 98 mm |
| Height of Base | 132 mm |
| Chuck Diameter | 100 mm |
| Length of Base | 195 mm |
| No of Index | 12 Index |
| Tenon Slot | 14 mm |
| Clamping slot | 16 mm |
| Total Weight (App.) | 14 Kgs |
