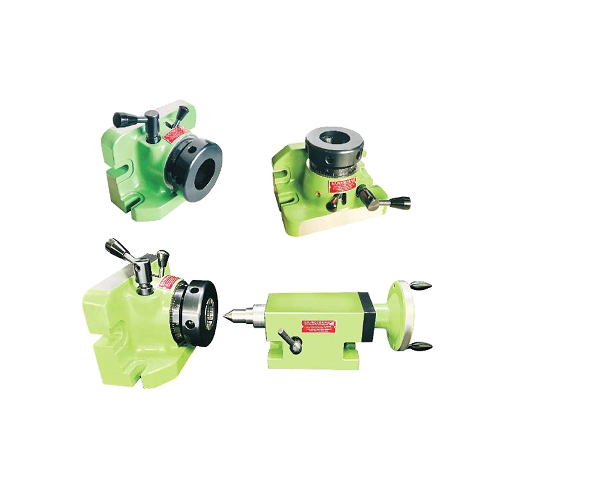

B.R.PRECISION SIMPLE INDEXING COLLET HEAD
Model Type: BR - SICH - 100 ( Collet Type )
Precision Simple Indexing head
- Horizontal & Vertical Type
- Quick Indexing at 12 Positions
- Easy set up for mass production
- Simple index include collet Holding Fixture
- Tail stock can be supplied for support (Optional)
| Model Types & Dimensions Mechanically Operated | |
| Specification |
Model Type BR-SICH-100 🠋 |
|---|---|
| Center height | 72 mm |
| Width of Base | 98 mm |
| Height of Base | 132 mm |
| Collet Fixture A-42 | Ø 3-42 mm |
| Length of base | 195 mm |
| No of Index | 12 Index |
| Tenon Slot | 14 mm |
| Clamping slot | 16 mm |
| Total Weight (App.) | 12 kgs |
