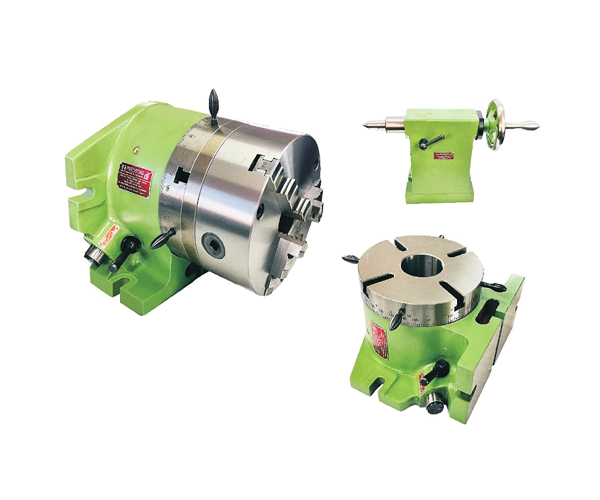

B.R.PRECISION QUICK INDEXING HEAD
Model Type: BR - QIHD - 200 ( Heavy duty Type )
Precision Simple Indexing head
- Suitable for machining in Horizontal & Vertical positions
- Quick Indexing at 24 Positions
- Easy set up for mass production
- Suitable for Heavy duty machining
- Tail stock can be supplied for support (Optional) MT-3 / MT-4
- It is ideal for machining for heavy duty keeping the total body constant
- Indexing Accuracy 0.03 microns
- Accuracy at 0.02 Microns
- The center Through hole is suitable for large and long work piece
- Tail stock Optional Accessories
OPTIONAL ACCESSORIES
- Chuck and flange
- Tail Stock
- Collet Holding Fixture A-25 / A-42
| Model Types & Dimensions Mechanically Operated | |
| Specification |
Model Type BR-QIHD-200 🠋 |
|---|---|
| Chuck Diameter | 200 mm |
| Center Height | 150 mm |
| Length of base | 305 mm |
| Width of Base | 250 mm |
| Height of Base | 255 mm |
| Through Bore | 44 mm |
| No of Index | 24 Index Least Count1° |
| Rotating of the chuck | 360 ° Least Count1° |
| Tenon Slot | 14 mm |
| Clamping slot | 16 mm |
| Total Weight (App.) | 38kgs |
