B.R.PRECISION PUNCH FORMER
Model Type: BR - PF - 100

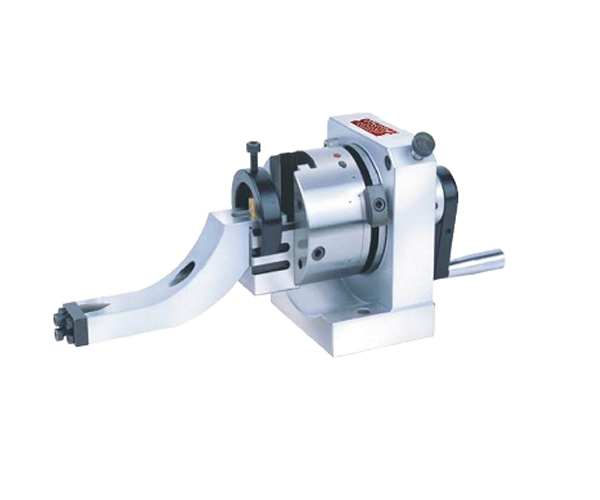

B R PRECISION PUNCH FORMER
- Suitable for Precision Grinding different kinds of punches and electrodes of EDM in a surface grinding machine.
- Horizontal & Vertical movement allows oval punching forming
- ‘V’ Block needs to be adjusted to center depending on different dia of the workpiece in order to achieve the accuracy.
- Besides the round radius and multi angle punches any special forms can be ground precisely
- By assembling crank arm any combination of tangents or radial form of the wheel dressing can be done accurately
| Model Types & Dimensions Hydraulically Operated | |
| Specification |
Model Type BR-PF- 100 🠋 |
|---|---|
| Clamping Ø Dia. Rangeof ‘V’ Block | Ø4-30 mm |
| Center Height | 75 mm |
| Travelof ‘V’ Block | 30 mm |
| Width of Base | 100 mm |
| Length of Base | 80 mm |
| Total Lengthof Base with Handle | 200 mm |
| Total Height | 125 mm |
| No .of Indexing Positions | 24 Index (1 indexis15º) |
| Capable of Wheel size of Dressing | 200 mm |
| Max. Radius Dressing Convex | R48 mm |
| Max. Radius Dressing Concave | R100 mm |
| Total Weight (App.) | 8 Kgs |
