B.R.PRECISION SINE TABLE
BR - ST - 120 - 150 - 230 - 260 - 600

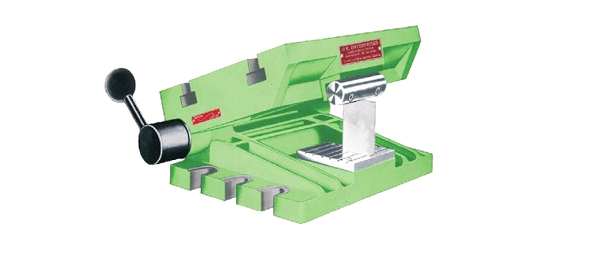

B R Precision Sine Table
- Made out of High Grade cast iron with brinell hardness of 180 & above providing it with resistance to breakage and fatigue.
- Unique design & structure it is ideal for absorbing the vibrations which are produced during machining and it is more stable in time.
- Roller and Roller base plate are made out of high grade alloy steel hardened and ground
The angles can be set easily by using end gauges based on the sine principle. - Possibilities of Angle setting is 0 - 45° Degree
- Suitable for raise of the work piece
- Parallelism at 10 microns accuracy
- Tenon slots and T-Slots are Grounded
- Side locking straps given for extra grip locking
| Model Types & Dimensions Hydraulically Operated | |||||
| Specification |
Model Type BR-ST-120 🠋 |
Model Type BR-ST-150 🠋 |
Model Type BR-ST-230 🠋 |
Model Type BR-ST-250 🠋 |
Model Type BR-ST-600 🠋 |
|---|---|---|---|---|---|
| Length of Table | 160 mm | 260 mm | 375 mm | 400 mm | 600 mm |
| Width of Table | 160 mm | 185 mm | 275 mm | 300 mm | 250 mm |
| Overall Height | 95 mm | 100 mm | 105 mm | 105 mm | 116 mm |
| Center Distance Btw. Rollers (C.D) | 120 mm | 150 mm | 230 mm | 250 mm | 220 mm |
| T-Slot Size | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm |
| Clamping slot | 16 mm | 16 mm | 16 mm | 16 mm | 16 mm |
| Total Weight (App ) | 15 kgs | 23 kgs | 50 kgs | 60 kgs | 103 kgs |
