B.R.PRECISION CAST IRON HEIGHT BLOCK BED
BR - CI HB - 1 - 2 - 3
Precision Height Block bed
- Made out of high grade cast iron are machined and Grounded
- Used on vmc machines, HMC and other larger machines
- They protect the surface of machine table and provide raise of the height
- parallelism accuracy within 0.02 Microns
- T Slots are grounded
- T slots are customize as per requirement
- VMC & HMC and other tool rooms
| Model Types & Dimensions | ||
| Specifications |
Model Type BR-CIHB-1 🠋 |
Model Type BR-CIHB-2 🠋 |
|---|---|---|
| Length (A ) | 1000 mm | 850 mm |
| Width (B) | 540 mm | 540 mm |
| Height (C) | 46 mm | 46 mm |
| T Slot (Optional) | 18 mm | 18 mm |
| T slot width | 18 x 32 X 12 | 18 x 32 X 12 |
| T-Slot Pitch | 100 mm | 100 mm |
| Weight (app) | 125 Kgs | 98 Kgs |
Precision Height Block bed
- Made out of high grade cast iron are machined and Grounded
- Used on vmc machines, HMC and other larger machines
- They protect the surface of machine table and provide raise of the height
- parallelism accuracy within 0.02 Microns
- T Slots are grounded
- T slots are customize as per requirement
- VMC & HMC and other Tool rooms
| Model Types & Dimensions | |
| Specifications |

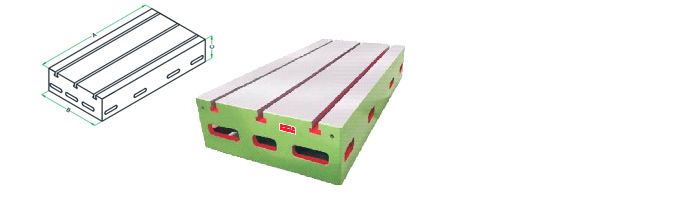

Model Type BR-CIHB-3 🠋 |
|---|---|
| Length (A) | 800 mm |
| Width (B) | 455 mm |
| Height (C) | 160 mm |
| T Slot (Optional) | 18 mm |
| T slotwidth | 18 x 32 X 12 |
| T-SlotPitch | 160 mm |
| Clamping Open Slot size ( E ) | 18 mm |
| Weight (app) | 105 Kgs |
