B.R.PRECISION TILTING ‘L’ ANGLE SQUARE PLATE
BR - TL ASP - 260 ( Tilting Type )

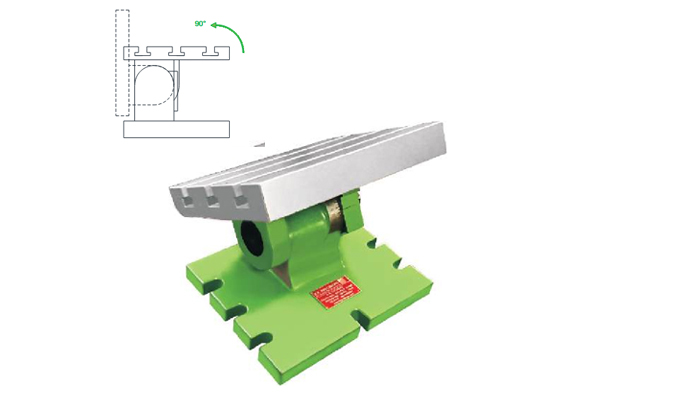

Tilting ‘L’ Angle square plate
- Minimizes the set up time
- Angular adjustment at 0 to 90°
- Compact in size Suitable for Medium duty
- Suitable in Surface grinding machines, Jig Boring
- machines, milling machines & H Boring machines
- Parallelism at 0.02 microns accuracy
- T - slots are grounded
| Model Types & Dimensions | |
| Specification |
Model Type BR-TLASP-260 🠋 |
|---|---|
| Length | 260 mm |
| Width | 200 mm |
| Height | 165 mm |
| Tilting Angle | 0-90° |
| T- Slot | 14 mm |
| Weight (App) | 32 kgs |
