B.R.PRECISION ‘L’ SQUARE PLATE

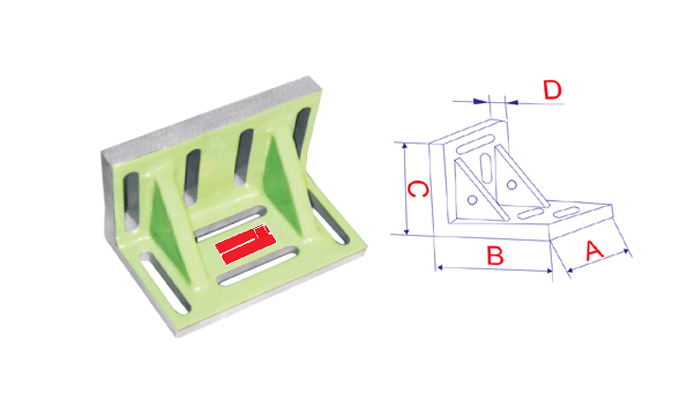

‘L’ Angle Square plate

‘L’ Angle Square plate

‘L’ Angle plates provide a practical means for clamping and holding work in vertical position for layout tooling and machining. This is made out of High grade Cast iron with brinell hardness of 180 above and are machined and Grounded at high accuracy,

L Angle plates are also used as a vertical reference for inspection. Vertical face provided with cored Slots for clamping in V M C or Grinding Machines and other Machines where as squareness are machined at right accurate constructional standards.The clamping of work piece are made easy Standard sizes and respective T Slots details are stated in the Table. Squareness and Perpendicularity are within 10 micron

Specification	Model Type BR-LP-1 🠋	Model Type BR-LP-2 🠋	Model Type BR-LP-3 🠋	Model Type BR-LP-4 🠋	Model Type BR-LP-5 🠋	Model Type BR-LP-6 🠋	Model Type BR-LP-7 🠋	Model Type BR-LP-8 🠋	Model Type BR-LP-9 🠋	ModelType BR-LP-10 🠋

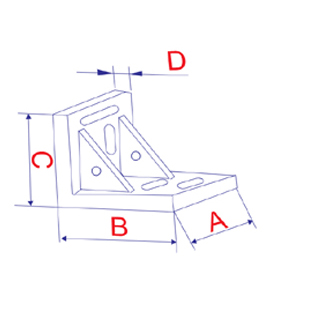

Model Types & Dimensions
Length (A)	280 mm	225 mm	205 mm	300 mm	450 mm	205 mm	180 mm	360 mm	450 mm	490 mm
Width (B)	260 mm	190 mm	150 mm	300 mm	450 mm	250 mm	180 mm	245 mm	280 mm	410 mm
Height (C)	210 mm	145 mm	130 mm	300 mm	350 mm	245 mm	155 mm	200 mm	205 mm	495 mm
Thickness (D)	40 mm	25 mm	25 mm	35 mm	35 mm	25 mm	25 mm	30 mm	30 mm	45 mm
Open Slot	18 mm	16 mm	14 mm	18 mm	18 mm	14 mm	14 mm	16 mm	16 mm	18 mm
Weight (App)	36 kgs	14 kgs	10 kgs	62 kgs	90 kgs	22 kgs	10 kgs	32 kgs	52 kgs	134 kgs

Specification	Model Type BR-LP-11 🠋	Model Type BR-LP-12 🠋	Model Type BR-LP-13 🠋	Model Type BR-LP-14 🠋	Model Type BR-LP-15 🠋	Model Type BR-LP-16 🠋	Model Type BR-LP-17 🠋
Model Types & Dimensions
Length (A)	590 mm	455 mm	330 mm	240 mm	250 mm	150 mm	105 mm
Width (B)	690 mm	360 mm	275 mm	210 mm	185 mm	130 mm	180 mm
Height (C)	490 mm	305 mm	600 mm	350 mm	155 mm	150 mm	105 mm
Thickness (D)	50 mm	40 mm	40 mm	30 mm	30 mm	20 mm	15 mm
Open Slot	18 mm	18 mm	18 mm	18 mm	16 mm	14 mm	12 mm
Weight (App)	150 kgs	93 kgs	109 kgs	38 kgs	17 kgs	7 kgs	3 kgs
