B.R.PRECISION RADIAL DRILLING TILTING BOX TABLE
BR - RD TBT - 650
Radial Drilling Titling Box Table 400
T slotted Angle plates provide a practical means for clamping and holding work in vertical position for
layout tooling and machining. This is made out of High grade Cast iron with brinell hardness of 180 above and are machined and Grounded at high accuracy,
Precision T-Slotted angle plates are also used as a vertical reference for inspection.

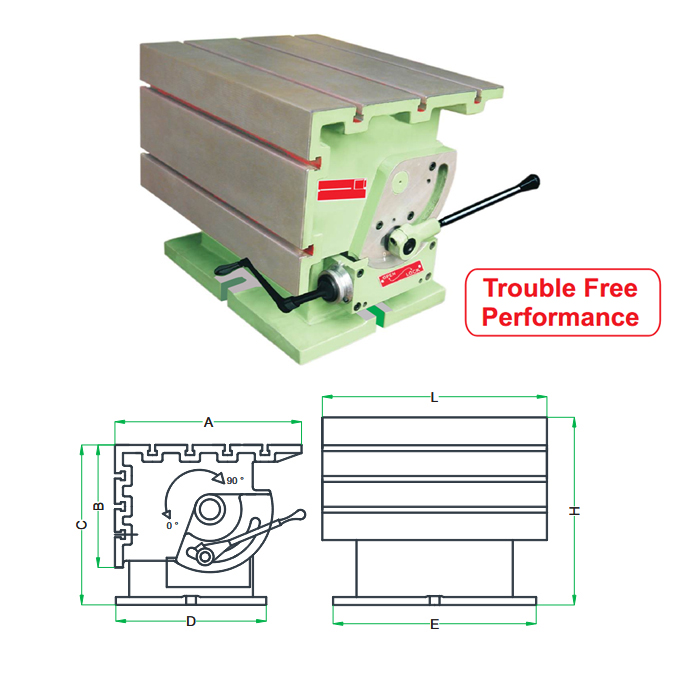

| Model Types & Dimensions | |
| Specification |
Model Typee BR-RDTBT-650 🠋 |
|---|---|
| Length of Table(L) | 670 mm |
| Width of Table(B) | 480 mm |
| Width of able(A) | 570 mm |
| Height of Table(C) | 570 mm |
| Total face Height tilting @90°(H) | 595 mm |
| Table T-Slot Size | 18 H7 |
| Base Width(D) | 445 mm |
| Base Length(E) | 585 mm |
| Angular Setting | 90° Degree |
| Angular Least Count | 1° Degree |
| Graduation collar Least Count | 2 Minutes |
| Base Clamping slot size | 22 mm |
| Max.Torque Load | 1250 Kgs |
| Weight (App.) | 600 Kgs |
