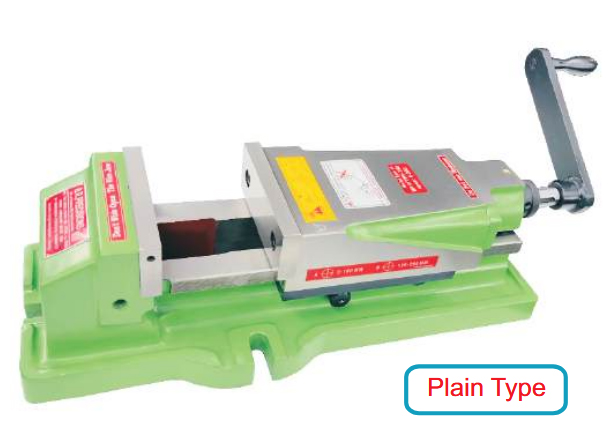

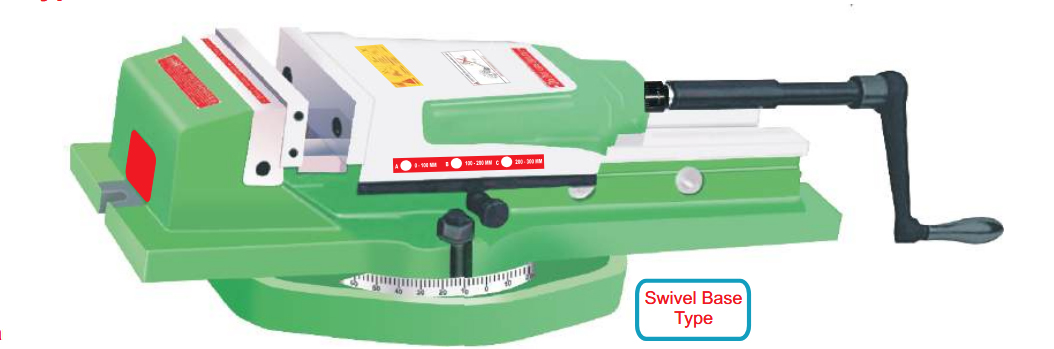

B.R.PRECISION POWER HYDRAULIC MACHINE VICE

Model Type: BR - HYMV - 110 - 130 - 150 - 160 - 250 - 300 - 200



This type of Hydraulic vice achieves a clamping force up to 5000 kgs using the simple turn of the handle without any effort. This advantage makes them ideal for heavy duty clamping in Machines This hydraulic vice is Made out of high tensile casting Machined and surface flame and ground to ensure maximum accuracy. Jaw plates are made out of tool steel machined and heat treated Hardened at 52° to 56° HRC and ground with stopper hole in side of the clamping jaws Inbuilt hydraulic cylinder for high clamping force which does not required any external force. Different stations given that is Pin changing for clamping the work pieces at different levels for shortening the time lapse of rotating the handle Tenon slots are grounded Longitudinal and cross squareness and Parallelism accuracy at 0.02 Micron High deflection / Bending resistant constructed for machining center Milling VMC and other machine shop applications Novalee Spicer

  • No Hammering
  • No Pipe Locking
  • No Hydraulic Power Pack Required
  • Extremely easy to clamp and un-clamp
  • Trouble Free Performance
  • Standard Accessories Supplied Set of T-Bolts, set of Tenons & Screws Two handle and lifting bolts, Operating manual & Inspection Report
Model Types & Dimensions Hydraulically Operated
Specification Model Type
BR-HYMV-110
🠋 		Model Type
BR-HYMV-130
🠋 		Model Type
BR-HYMV-150
🠋 		Model Type
BR-HYMV-160
🠋 		Model Type
BR-HYMV-250
🠋 		Model Type
BR-HYMV-300
🠋 		Model Type
BR-HYMV-200
🠋
Width of Jaws 110 mm 130 mm 150 mm 150 mm 150 mm 150 mm 200 mm
Max.Jaw Opening Range 0-180 mm 0-225 mm 0-150 mm 0-200 mm 0-250 mm 0-300 mm 0-300 mm
Depth of Jaws 35 mm 45 mm 55 mm 55 mm 55 mm 55 mm 65 mm
Workface Height 60 mm 75 mm 80 mm 80 mm 80 mm 80 mm 98 mm
Clamping Position No I 0-65 mm 0-75 mm 0-75 mm 0-100 mm 0-85 mm 0-100 mm 0-100 mm
Clamping Position No II 65-125 mm 75-150 mm 75-150 mm 100-200 mm 85-170 mm 100-200 mm 100-200 mm
Clamping Position No III 125-180 mm 150-225 mm ----- ----- 170-250 mm 200-300 mm 200-300 mm
Overall width with swivel base 220 mm 265 mm 335 mm 335 mm 335 mm 335 mm 370 mm
Overall width without swivel base 165 mm 200 mm 225 mm 225 mm 225 mm 225 mm 275 mm
Length of Base 435 mm 550 mm 465 mm 530 mm 580 mm 615 mm 675 mm
Clamping Force kgs 1000 kgs 3000 kgs 4000 kgs 4000 kgs 4500 kgs 4500 kgs 4500 kgs
Overall Height with Swivel base 138 mm 165 mm 184 mm 184 mm 184 mm 184 mm 221 mm
overall height without swivel base 95 mm 120 mm 136 mm 136 mm 136 mm 136 mm 165 mm
Tenon slot Size 14 mm 18 mm 18 mm 18 mm 18 mm 18 mm 18 mm
Clamping slot size 16 mm 18 mm 18 mm 18 mm 18 mm 18 mm 18 mm
Total weight(App) 19 kgs 35 kgs 45 kgs 50 kgs 55 kgs 60 kgs 80 kgs
Total weight with swivel Base(App) 32 kgs 59 kgs 60 kgs 65 kgs 70 kgs 75 kgs 95 kgs
Swivel base Lengthx width 265 x 220 mm 285 x 265 mm 330 x 310 mm 330 x 310 mm 330 x 310 mm 330 x 310 mm 397 x 316 mm
swivel base height 42 mm 45 mm 48 mm 48 mm 48 mm 48 mm 56 mm
